제품사양

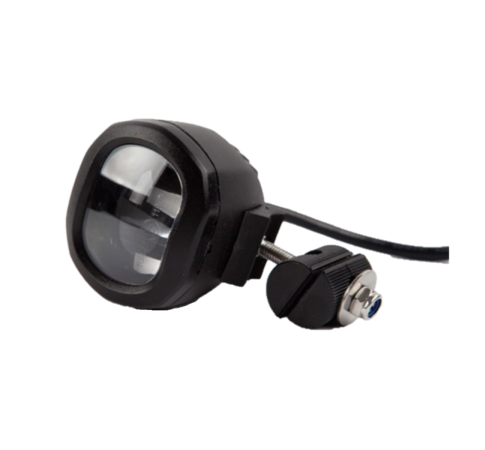

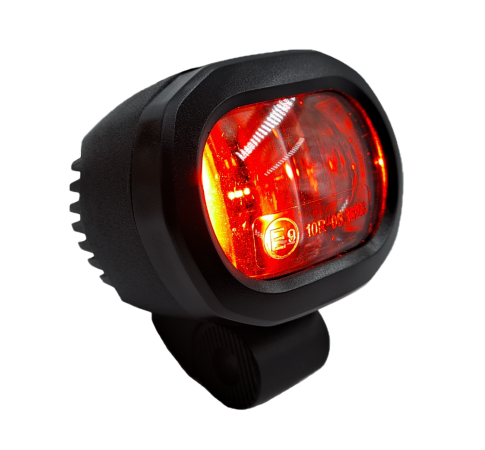

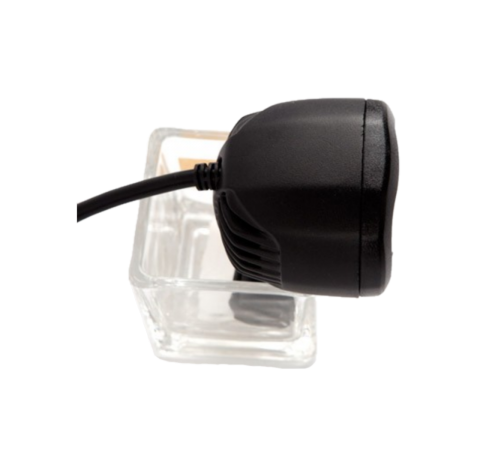

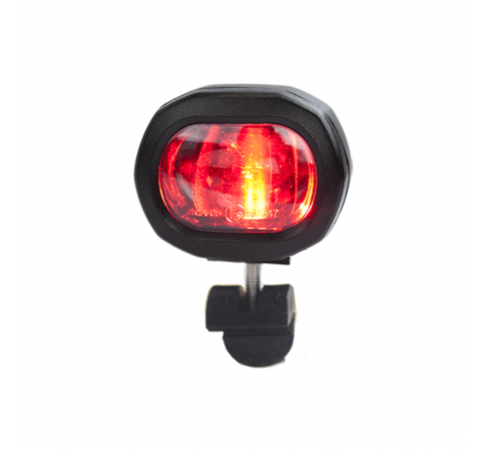

| ITEM | LINEBEAM 03 |
|---|---|
| luminous source | High-power CREE LEDs 6pcs * 3w |
| Operating Voltage | 10~80V |
| Operating Temperature ( Degree Celsius ) | -40℃ ~ +80℃ |
| LED Power | 18W |
| Lumen | 8000LM max. |
| Material of the case | Diecast aluminum die-cast housing , PC lens Cover |
| Bracket | Stainless steel bracket |
| Vibration Condition | 9.3G at 55Hz |
| Water prbofe | IP69 |
| Weight(g) | main body : 293g bracket , screw : 65g |
| Color temperature | 6000K |
| Lift Time(MTBF) | 30000 hours |
| Light Color | Red ( Option : Blue, Green color ) |
| Optional Beam | Line type |
| Beam shape | 30 degree line beam |
| Reverse Protect | Rever Polarity Protected |
| Wire | Double Insulated Silicon Rubberized Wire |
| Measurement | 146W) x 45(H) x 62(D) mm |
| Certificate | CE, IP69, RoHs |
| Measuring method |
|---|
 |
 |
 |
